Product Description

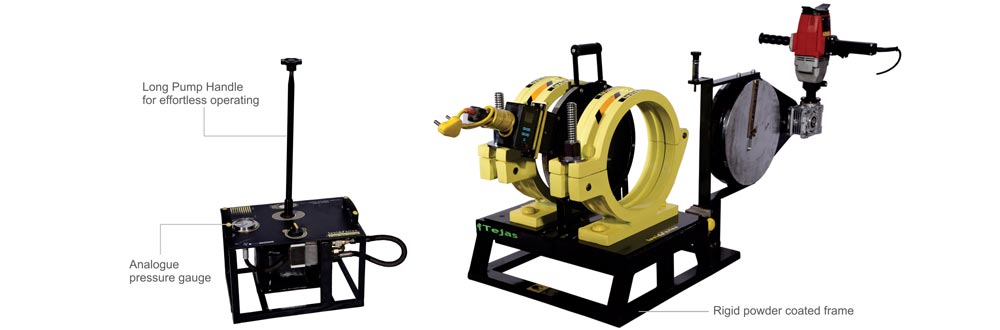

Hand Hydro Series (HHS) are Hydraulic Hand Pump Based Butt Fusion Welding Machine which comes with completely Well Equipped Superior Quality Components To Deliver Exceptionally Well Service Life ensuring Low Maintenance and Easy Operating.

Application

The HHS is been designed to work at any construction building site, in pipe trenches, or in workshop.

Advance Features

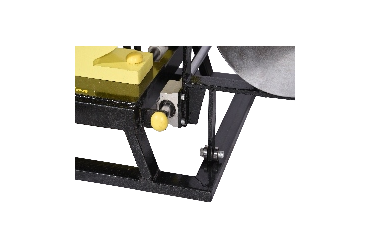

  • The HHS has rigid basic frame to support two high grade aluminum casted main clamps operated by single hydraulic cylinder and hose pipes.

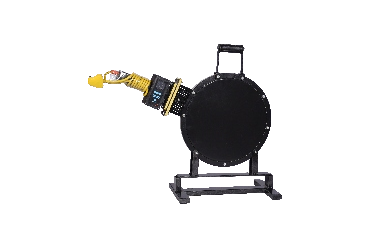

  • The HHS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
  • The HHS has 4” easily readable liquid fill analogue pressure gauge.
  • The HHS heating plate has built-in digital timer with audible signal.
  • The HHS hydraulic cylinder have superior quality PU seals.

Working Range with Various Model : 230V - 50/60Hz

Description ø Suitable Pipe Size ø Inch Dimension( ” )
(Machine Body)
Kg
HHS 110 32 - 110 mm 1 - 4” 23 x 18 x 15 31
HHS 160 50 - 160 mm 1½ - 6” 25 x 21 x 17 41
HHS 250 110 - 250 mm 4 - 10” 25 x 21 x 20 47
HHS 315 160 - 315 mm 6 - 12” -- --

Standard Composition

Standard Machine Body, Heating Plate With DTC, Hand Pump Hydraulic Unit, Reduce Clamp Inserts.

Optional : Trimming Unit
