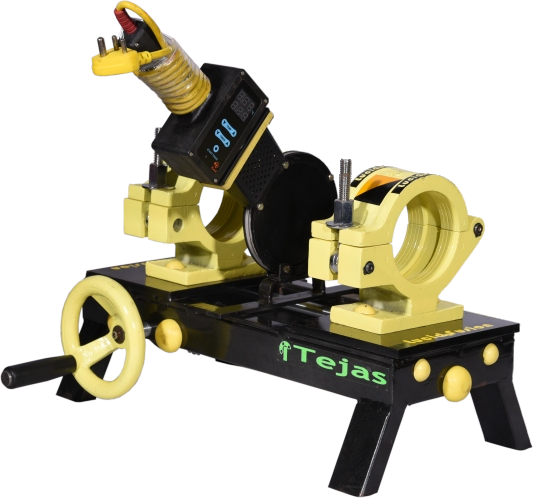

MECHANICAL WELDER SERIES

Mechanical Welder Series (MWS) Butt Fusion Welding Machine which comes Well Equipped Superior Quality Components To Deliver Exceptionally Well Service Life ensuring Low Maintenance and Easy Operating System.

The MWS is been designed for use in workshops, on the building site, in pipe trenches, on pipe bridges etc.

• The MWS heating plate comes with microprocessor based PID digital temperature controller for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings.
• The MWS heating plate has built-in digital timer with audible signal.
• The MWS has superior quality esquare thread screw with high ratio to gets reasonably fast movement for easy and quick operation.
• The MWS has manual pressure locking system.

Description	ø Suitable Pipe Size	ø Inch	Dimension( ” ) (Machine Body)	Kg
MWS 110	32 - 110 mm	1 - 4”	23 x 18 x 15	26
MWS 160	50 - 160 mm	1½ - 6”	25 x 21 x 17	36
MWS 250	110 - 250 mm	4 - 10”	25 x 21 x 20	42

Standard Machine Body, Heating Plate With DTC, Hand Pump Hydraulic Unit, Reduce Clamp Inserts.

Optional : Trimming Unit
