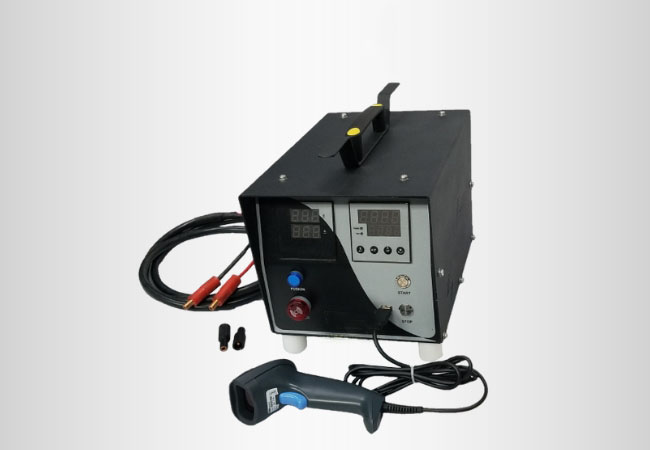

Manual Electrofusion Welding Machine
Avesta Exports is supplier and exporter of Manual Electrofusion Welding Machine in Ahmedabad, Gujarat, India.
Model
ELF M2Model Name
Manual Electrofusion With ScannerTechnical Features
Working Range : 20 To 315mm
Operating Temp. Range : -20°C to 50 °C
Supply Voltage
Power Supply : 200 To 230 VAC
Frequency : 50/60 Hz. 1o (Single Phase)
Current Consumption : AC 16 Amp. Max
Generator Required : 5 KVA
Output Voltage
Output Voltage : 39 V TO 40 V
Scanner
Scanner Interface : USB
Scanner code Type : Barcode
Connecting Cable
Input Supply Cable : 1.5 Meter
Fusion Cable : 3 Meters
Connecting pin : 4 mm PVC Insulated with cable, 4.7 mm One pair
Connection Cable
AC (1Ø) 15 Amp Three Pin Top (Line + Neutral + Earth)
Data Backup (Optional)
Flash Drive Interface : USB
Key Features
Input Voltage Indicatior
Scanner to Scan Fusion Barcode to Set Fusion Time
luminated ON/OFF Switch
Illuminated START/ STOP Push Button
Fusion Process Indicator LED
Selector Switch Is very Advance Future Of Our Electrofusion for Accurate Joints. (Set Selector Switch Near to Supply Voltage for Constant Fusion Voitage)
Count Down Timer Along with Av Meter for Fusion Voltage & Ampere.
Audio Visual Signal for Fusion & Cooling Process.
Stop Button to Stop Fusion & Cooling at Any Stage.
Face Lift Design with Big Display for Easy Visual.
Lifting Handle & Cable Clamp On Top.
Dust Protection Cap for USB slot
