HDPE Pipe Jointing Machine
Hand Hydraulic Butt Fusion Welding Machine
Avesta Exports is supplier and exporter of Hand Hydraulic Butt Fusion Welding Machine in Ahmedabad, Gujarat, India.
Model
HHS (Hand Hydro Series)Key Features
Pair of High Grade Aluminium Pipe Clamps Mounted On Robust Ms Main Structure.
Compact Hydraulic Hand Pump Unit with Glycerine Filled Pressure Gauge & Direction Control Valve Mounted On Same Main Structure.
Electricaly Operated Geared Drive Trimmer for Optimised Cutting Speed, Compact & Easy Locking Mechanism.
PTFE Coated Heating Plate with Microprocessor Base PID Digital Temperature Controller.
Standard Configuration

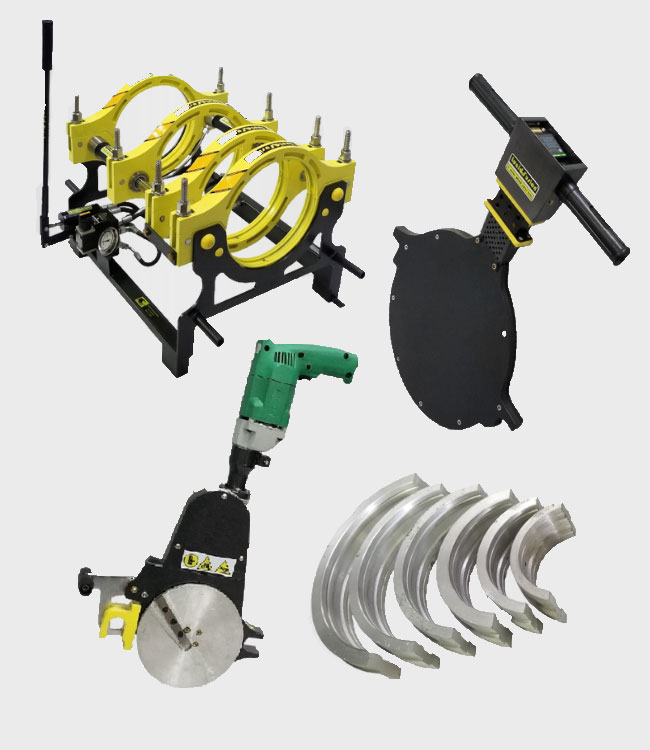

Basic Machine with Hydrulic Unit, Trimming Unit (Planer), Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert.Connection Type
AC (1Ø) 15 Amp Three Pin Top (Line +Neutral + Earth)Specification
| Model | HHS 110 | HHS 160 | HHS 200 | HHS 250 | HHS 315 |
|---|---|---|---|---|---|
| WORKING RANGE | 110-32MM | 160-50MM | 200-63MM | 250-90MM | 315-90MM |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ |
| HEATER POWER | 370 WATT | 750 WATT | 1000 WATT | 1150 WATT | 2000 WATT |
| GEN SET REQUIRED | 3KVA | 5KVA | 5KVA | 5KVA | 5KVA |
| STANDERED COMP. WEIGHT | 65 KG | 80 KG | 95 KG | 127 KG | 190 KG |
