Product Description

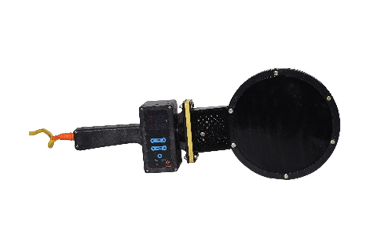

We are specialized in developing and manufacturing heating plates with Microprocessor Based PID Digital Temp. Controller with Audible Timer (DTC) for butt fusion welding of PE, PP, PPH & PVDF pipes & fittings covered with high-quality PTFE coated non-stick glass cloth.
Advance Features
- Easily replaceable PTFE cloth & Heating element in the field if it is damaged to avoid inconvenience in the middle of a critical jobs.
- Specially designed insulated handlewith better grip for firm handling.
- Light in weight for easy handling.
Working Range with Various Model
110 - 450 : Single phase 220V - 50/60Hz
630 - 1200 : Three phase 440V - 50/60Hz
| Description | ø Suitable Pipe Size | ø Inch | Dimension( ” )
(DTC) |
Kg | Watt |
|---|---|---|---|---|---|
| 110 | 110mm | 4” | 17 x 3 x 6 | 1.8 | 400 |
| 160 | 160mm | 6” | 19 x 3 x 8 | 2.6 | 700 |
| 200 | 200mm | 8” | 22 x 3 x 11 | 4.6 | 800 |
| 250 | 250mm | 10” | 23 x 3 x 12 | 4.8 | 800 |
| 315 | 315mm | 12” | 26 x 6 x 20 | 9.2 | 1500 |
| 400 | 400mm | 16” | 30 x 6 x 24 | 14.3 | 2200 |
| 450 | 450mm | 18” | 32 x 6 x 26 | 19.8 | 2500 |

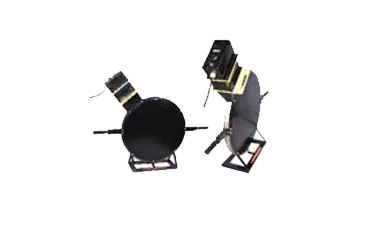

| 630 | 630mm | 24” | 51 x 12 x 41 | 65 | -- |
| 630 x 800 | 630 - 800 mm | 24”x32" | -- | -- | -- |
| 630 x 1000 | 630 - 1000 mm | 24”x40" | -- | -- | -- |
| 630 x 1200 | 630 - 1200 mm | 24”x44" | -- | -- | -- |
We think coated heater surface are inappropriate for field work where the coated surface can be easily damaged. This jeopardizes weld quality until the heater surface has been refurbished. PTFE cloth available.
We also provide custom heating plates as per your requirements.
