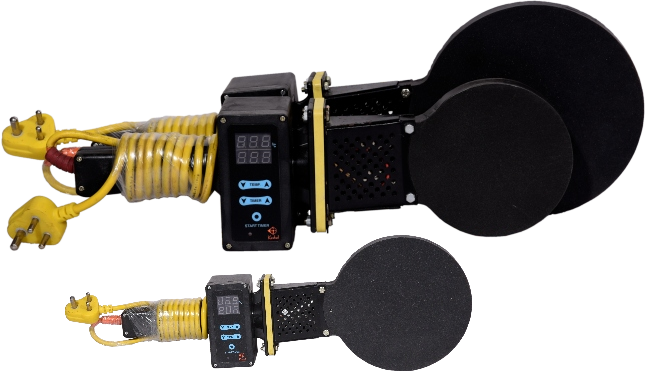

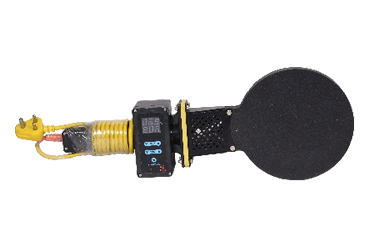

Casted Hot Plate with Digital Temperature Controller with Audible Timer:
We are specialized in developing and manufacturing casted heating plates for butt welding of PE, PP, PPH & PVDF pipes & fittings coated with high-quality PTFE non-stick coating & controlled by Microprocessor based PID Digital Temperature Controller with Audible Timer.
Advance Features
- Specially design insulated handle with better grip for firm handling.
- Light in weight for easy handling.
- Uniform & fast heating all around surface.
- Long service life.
Working Range with Various Model
110 - 450 : Single phase 220V - 50/60Hz
630 - 1200 : Three phase 440V - 50/60Hz
| Description | ø Suitable Pipe Size | ø Inch | Dimension( ” )
(DTC) |
Kg | Watt |
|---|---|---|---|---|---|
| 110 | 110mm | 4” | 17 x 3 x 6 | 1.9 | 850 |
| 160 | 160mm | 6” | 20 x 3 x 8 | 2.6 | 950 |
| 250* | 250mm | 10” | -- | -- | -- |
| 315 | 315mm | 12” | -- | -- | -- |
| 400* | 400mm | 16” | -- | -- | -- |
| 450* | 450mm | 18” | -- | -- | -- |
We think coated heater surface are inappropriate for field work where the coated surface can be easily damaged.This jeopardizes weld quality until the heater surface has been refurbished. PTFE cloth available.
We also provide custom heating plates as per your requirements.
