Automatic BUTT Fusion Pipe Welding Machine
Avesta Exports is supplier and exporter of Automatic BUTT Fusion Pipe Welding Machine in Ahmedabad, Gujarat, India.
Model
IWS (Intelligent Welder Series)Key Features
Pair of High Grade Aluminium Pipe Clamps with Parallel Hydraulic Cylinder Mounted On Robust Ms Main Structure.
PLC Based Compact & Lightweight Electro-Hydraulic Unit with Corded Remote Control for Easy Operating, Separate Pressure Requlator for Drag & Joint, MCB Along with Voltage Meter & R, Y, B Indicator.
Electrically Operated Geared Drive Trimmer for Optimised Cutting speed, Compact & Easy Locking Mechanism.
PTFE Coated Heating Plate with Microprocessor Base PID Digital Temperature Controller.
Standard Configuration

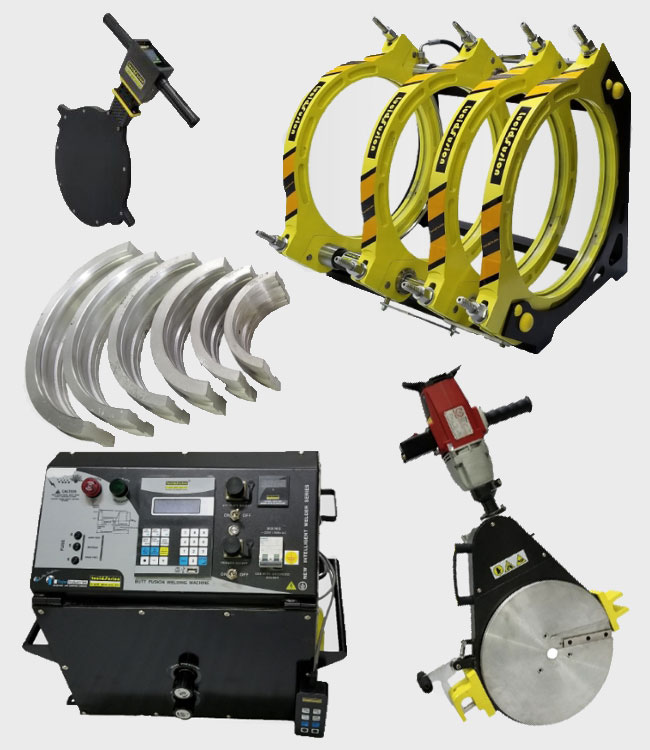

Basic Machine, Hydraulic Unit, Trimming Unit (Planer), Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert.Connection Type
AC (1Ø) 15 Amp Three Pin Top (Line + Neutral + Earth)Mobile Application
User Friendly Lucid Fusion Android Mobile Application Ensure Easy, Fast & Error free Calculation of Welding Parameter Just by Selecting a Machine Model & Pipe Parameter.Specification
| Model | IWS 160 | IWS 200 | IWS 250 | IWS 315 | IWS 450 |
|---|---|---|---|---|---|
| WORKING RANGE | 160-50MM | 200-63MM | 250-90MM | 315-90MM | 450-200MM |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ | AC 220V/50HZ |
| HEATER POWER | 750 WATT | 1000 WATT | 1150 WATT | 2000 WATT | 3300 WATT |
| GEN SET REQUIRED | 5KVA | 5KVA | 5KVA | 7.5KVA | 7.5KVA |
Model
IWS (Intelligent Welder Series)Key Features
Pair of High Grade Aluminium Pipe Clamps with Parallel Hydraulic Cylinder Mounted On Robus Ms Main Structure.
PLC Based Compact & Lightweight Electro-Hydraulic Unit with Corded Remote Control for Easy Operating, Separate Pressure Requlator for Drag & Joint, MCB Along with Voltage Meter & R, Y, B Indicator.
Electrically Operated Geared Drive Trimmer for Optimised Cutting speed, Compact & Easy Locking Mechanism.
PTFE Coated Heating Plate with Microprocessor Base PID Digital Temperature Controller.
Remote operated over Hade Wire Rope Hoist to Lift Mirror & Trimmer.
Standard Configuration
Basic Machine, Hydrulic Unit, Trimming Unit (Planer), Hot Plate, Trimmer & Hot Plate Carrying Case, Adapter Clamping Insert, Over Hade Wire Rope Hoist.Connection Type
AC (3Ø) 32 Amp Five Pin Top (3Line [R,Y,B] + Neutral + Earth)Specification
| Model | IWS 630 | IWS 800 | IWS 1000 | IWS 1200 |
|---|---|---|---|---|
| WORKING RANGE | 630-315MM | 800-450MM | 1000-630MM | 1200-630MM |
| RECAMANDE TEMP | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C | 180 C TO 220°C |
| TEMP. DEVIATION | ± 5°C. | ± 5°C. | ± 5°C. | ± 5°C. |
| SUPPLY VOLTAGE | AC 440V / 50HZ | AC 440V / 50HZ | AC 440V / 50HZ | AC 440V / 50HZ |
| HEATER POWER | 5000 WATT | 8500 WATT | 10000 WATT | 11000 WATT |
| GEN SET REQUIRED | 15KVA | 15KVA | 20KVA | 20KVA |
